[CES 2020] The magnetic sensor detects one ten-millionth of geomagnetism

This report introduces the ultrasensitive magnetic sensor, TDK’s new product currently under development, which will be exhibited at the TDK booth at CES 2020, the world's largest consumer electronics show. The ultrasensitive magnetic sensor is capable of measurements at the pico tesla level, which is an extremely weak magnetic field of about one ten-millionth of geomagnetism. Furthermore, its innovative design allows the device to make a measurement outside the shielded room, easily without large-scale equipment. Thanks to its unprecedented convenience and usability, it is expected to serve a wide range of applications.

Wide potential for applications of shieldless, easy-to-use, ultrasensitive magnetic sensor

The strength of geomagnetism is already relatively weak with about 50 micro teslas, approximately one several-thousandth of ordinary permanent magnets. Even weaker is biomagnetism produced by the brain and heart, which generates the magnetic field of about one millionth to one billionth of geomagnetism (pico to femto tesla level)*1.
These minute magnetic fields can be detected with a highly sensitive SQUID (superconducting quantum interference device) flux meter*2. However, the SQUID requires bulky and extensive systems such as cooling devices or systems that can block geomagnetism.
TDK thus developed an ultrasensitive magnetic sensor capable of measuring weak biomagnetic fields at room temperature. In 2016, as a result of collaborative research with the Tokyo Medical and Dental University, TDK became the first in the world to successfully carry out measurement and visualization (imaging) of the cardiac magnetic fields using MR sensors at room temperature. Presently, the MR sensor-based system can measure ultra-weak magnetic fields of 3 pico teslas. Since March 2019, the modified system has also been able to measure cardiac magnetic field distribution in real time, thanks to advancements in high-precision measurement. As the bulky magnetic shields required by conventional models have been eliminated. Measurements have become much easier. This comes as a result of TDK’s desire for everyone to use ultrasensitive magnetic sensors more for a range of purposes such as industrial and infrastructural applications.

Shieldless experiment imaging

Video commentary

Video commentary

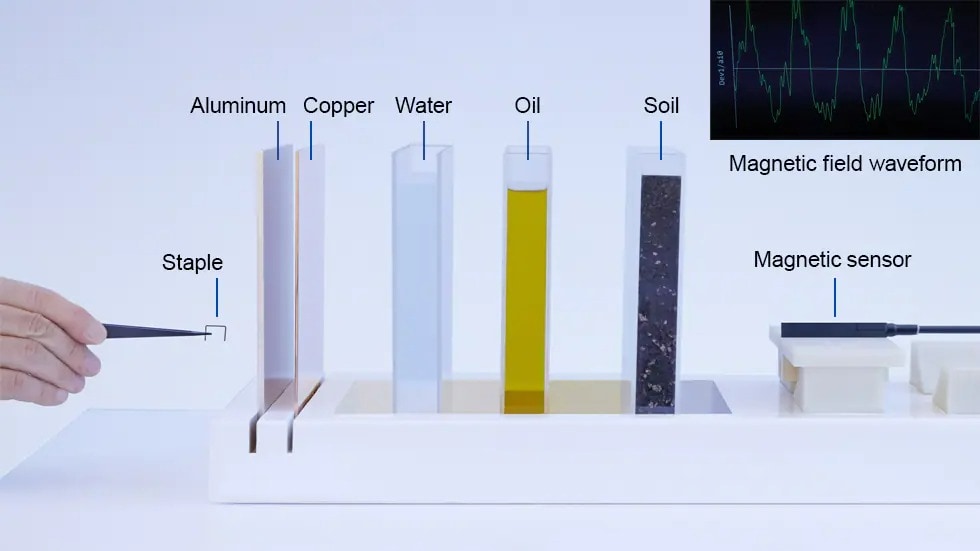

TDK has succeeded in detecting and measuring in real time the magnetic field of small staples through aluminum, copper, water, oil, and soil.

Although sensors applying light and infrared rays are unable to detect clearly if there are obstacles such as copper or earth between the measured objects, magnetic sensors do not have this limitation. Taking advantage of these features, TDK’s new ultrasensitive magnetic sensor is expected to be used for a wide variety of industrial and infrastructural applications, and there is a possibility to produce unprecedented breakthroughs.
Examples of new systems that can detect weak magnetic fields include

  • devices that can detect metallic foreign substances in pharmaceuticals and foods with ultra-high sensitivity,
  • magnetic particle testing (MT) for detecting fine defects that cannot be discovered with the naked eye, and
  • searching for resources deep underground without the need for drilling, such as in the exploration of metal and mineral resources.
This suggests a potentially vast range of applications and a promising future for ultrasensitive magnetic sensors, capable of measuring ultra-weak, pico-tesla level magnetic fields of one ten-millionth of geomagnetism without the need for large, costly facilities.

At CES 2020, TDK will do demonstrations wherein we will provide details of our newly-developed ultrasensitive magnetic sensors (product name: Nivio xMR sensor), as well as listen to your requests, needs, and challenges faced regarding ultrasensitive magnetic sensors.

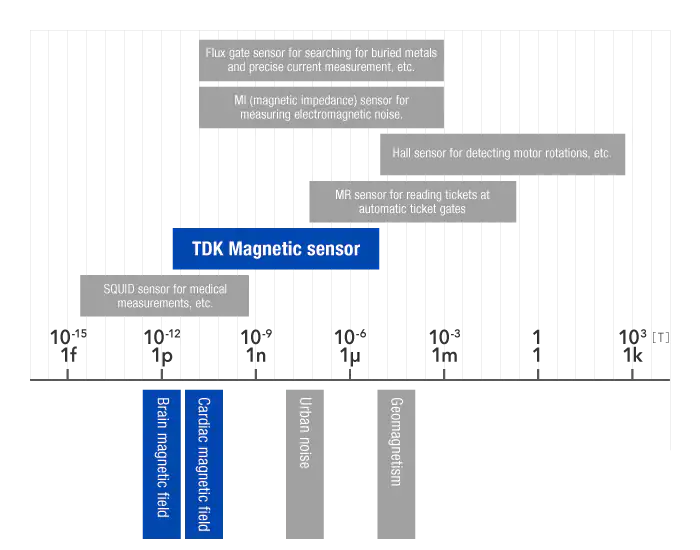

Different magnetic sensors and their measuring ranges

Different magnetic sensors and their measuring ranges
CES 2020
This product will be exhibited at CES 2020, the world's largest home electronics technology trade fair held at the Las Vegas Convention Center in the United States from January 7 to 10, 2020.

January 7–10, 2020
Las Vegas Convention Center. 3150 Paradise Rd, Las Vegas, NV 89109
Central Hall, TDK Stand #11448

Nivio xMR sensor

Nivio xMR sensor

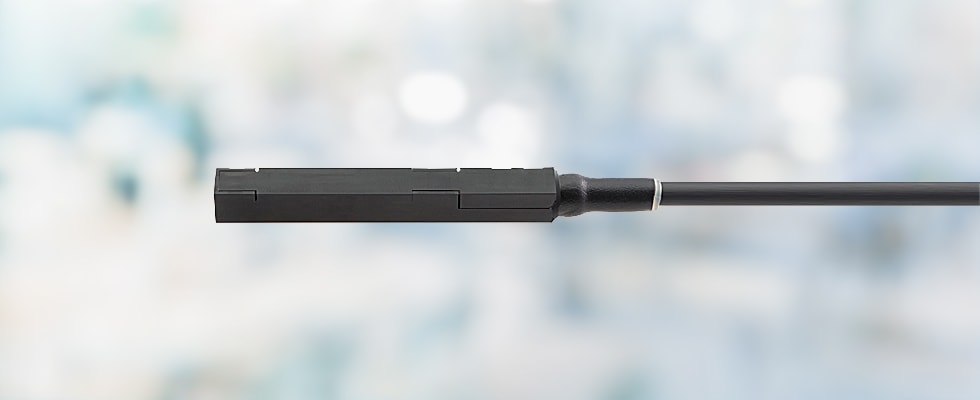

The Nivio xMR ultrasensitive magnetic sensor is a light small sensor head measuring 12 x 12 x 74mm capable of shieldless measurments at room temperature.

Terminology

  1. Magnetic field: Magnetic field is the state in which magnetic force is acting in space. The earth is like one massive magnet with magnetic fields (geomagnetism), specifically the south pole in the Arctic region and north pole in the Antarctic region.
  2. SQUID: Stands for “Superconducting Quantum Interference Device.” The SQUID flux meter is a magnetic sensor that applies the superconducting quantization phenomenon.
