EMC components: World's first chip beads able to offer effective noise suppression in the 2.5-GHz range

EMC components: World’s first chip beads able to offer effective noise suppression in the 2.5-GHz range

Sep. 3, 2013

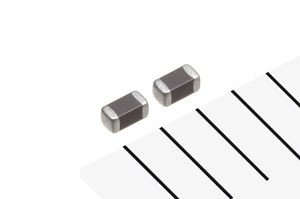

TDK Corporation has extended its MMZ portfolio of Gigaspira beads with the MMZ1005-V series, which features the world’s highest* impedance peak frequency in the 2.5 GHz range. The new EMC components enable, for the first time, simple and effective noise suppression of high-frequency signals above 2 GHz, as used for WLAN and LTE, for example. The new Gigaspira beads offer a high impedance of up to 3000 Ω at 2.5 GHz. The types are available in IEC case size 1005 (EIA 0402) and measure a miniature 1.0 mm x 0.5 mm x 0.5 mm. Thanks to these features the new MMZ1005-V Gigaspira beads are ideally suited for noise suppression in smartphones, tablet PCs and other mobile communication devices. Production of the new MMZ1005-V Gigaspira beads begins in September 2013.

The benchmark performance of the TDK MMZ1005-V series was made possible thanks to the use of new ferrite material. Depending on type, the new beads offer a maximum DC resistance of between 0.9 Ω and 1.6 Ω and a rated current of 150 mA to 250 mA. With the addition of the new series to the standard MMZ1005 series and the wideband MMZ1005-E Gigaspira series, TDK’s lineup of chip beads now covers an even wider range of requirements for noise suppression in signal lines.

  • * As of September 2013, according to TDK data

Glossary

  • Impedance peak frequency: The frequency at which the impedance of an EMC component is highest. The impedance peak frequency is typically in the range of the component’s self-resonant frequency.

Main applications

  • Smartphones, tablet PCs, and other mobile communication devices
  • Electronic devices that support LTE and WLAN (IEEE 802.11 b/n)

Main features and benefits

  • Impedance peak frequency in the 2.5 GHz range enables effective noise suppression in the high frequency range for the first time.

Key data

Type Impedance at 100 MHz [Ω] ±25% Impedance at 1 GHz [Ω] ±40% Impedance at 2.5 GHz [Ω] (typ.) DC resistance [Ω] (max.) Rated current [mA] (max.)
MMZ1005AFZ750V 75 500 1400 0.90 250
MMZ1005AFZ151V 150 1000 2500 1.30 200
MMZ1005AFZ181V 180 1200 3000 1.60 150
