Noise suppression sheets: Flexield offers outstanding performance for high-frequency applications (TDK-EPC Corporation)

Information contained in the news releases are current as of the date of the press announcement, but may be subject to change without prior notice.

This product has been discontinued and is no longer available for sale by TDK.

September 16, 2010

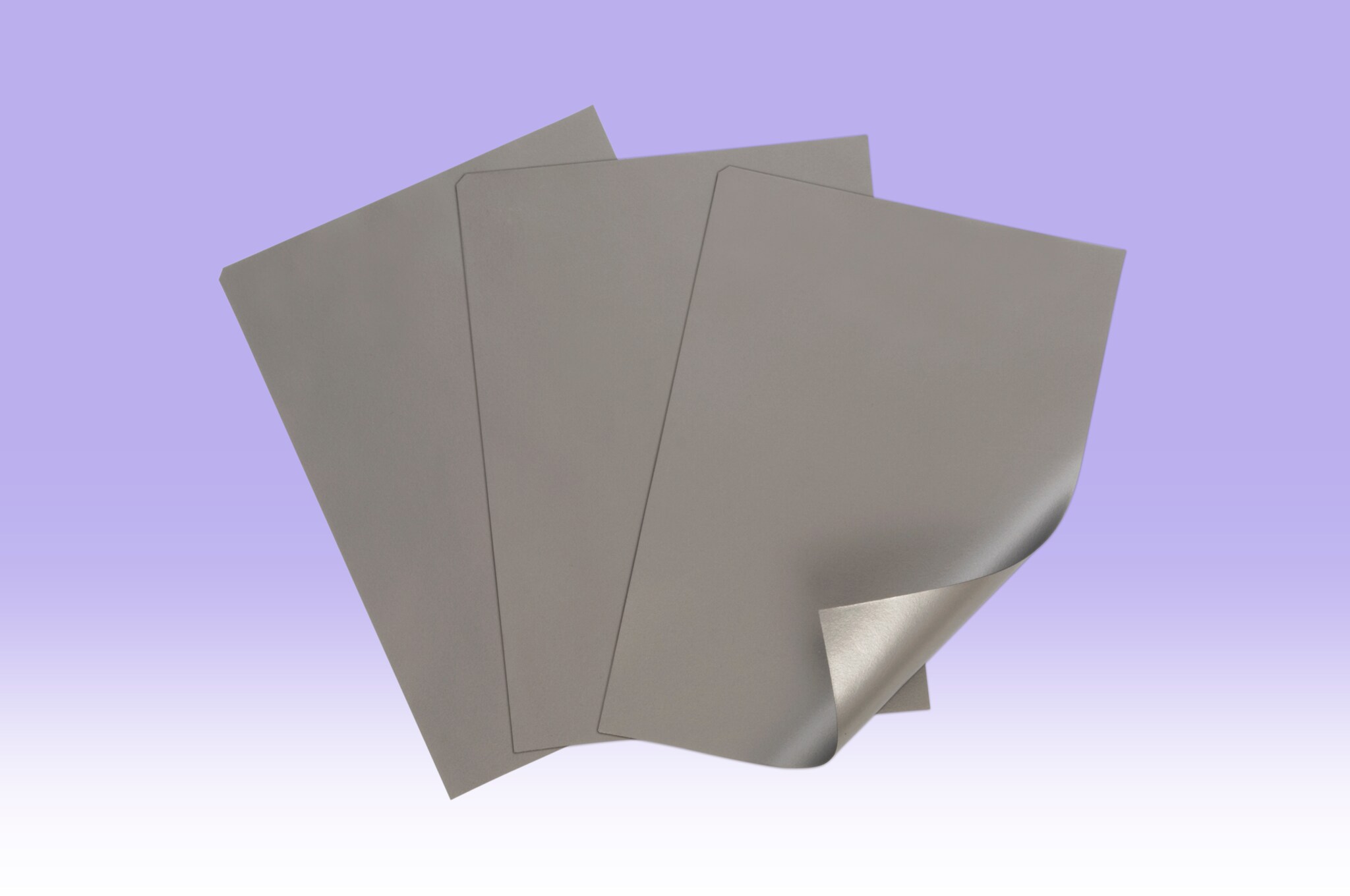

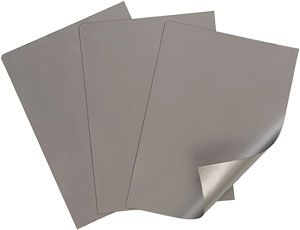

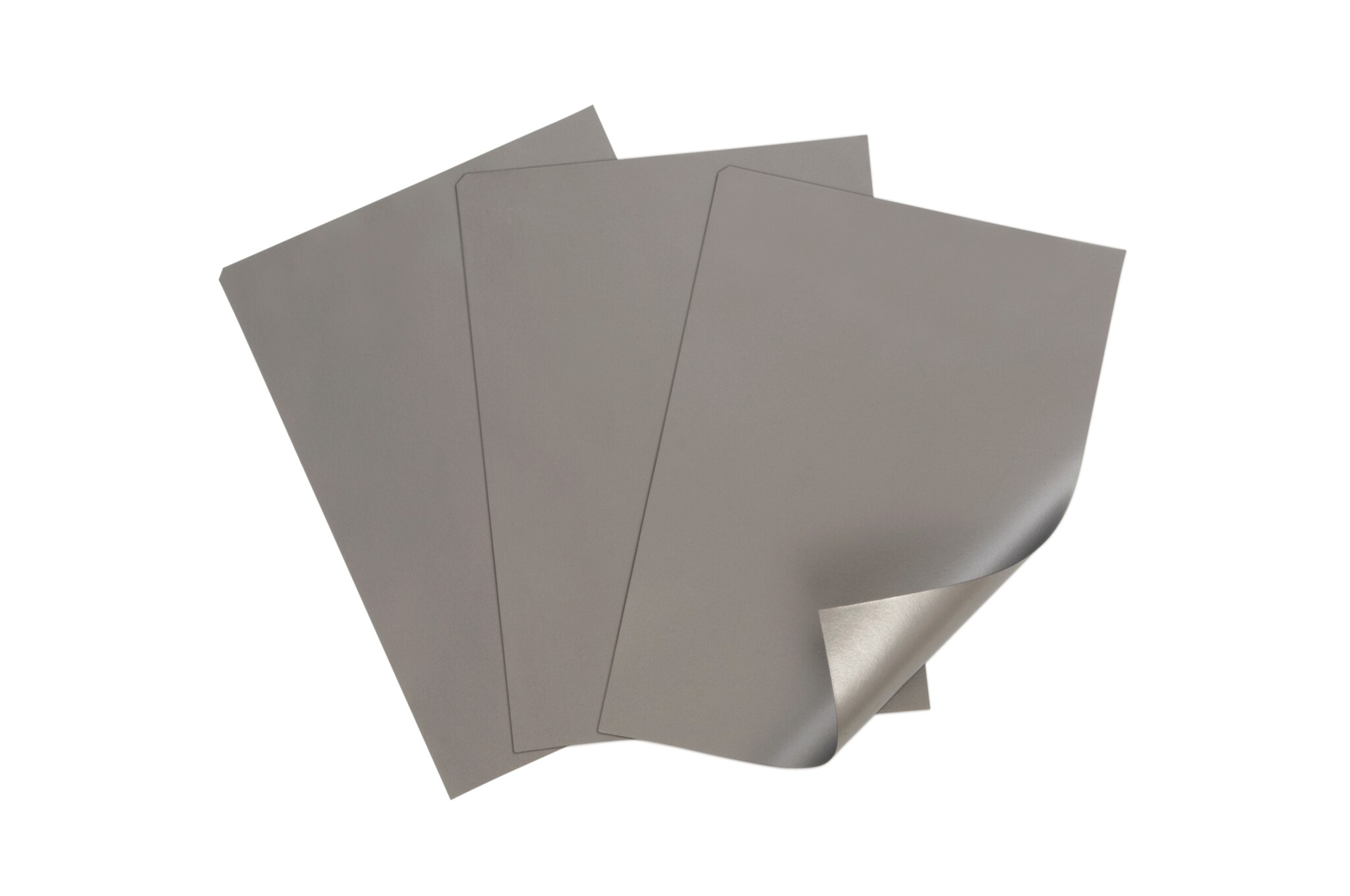

TDK-EPC, a group company of the TDK Corporation, presents its newly developed TDK Flexield family of IRJH3 magnetic sheets. The new sheets exhibit outstanding performance in suppressing the electromagnetic noise radiated by the ICs and flexible printed circuit boards of electronic devices. Mass production is scheduled to begin in October 2010.

The key enablers in the development of the IRJH3 magnetic sheets are the specialized materials technologies of TDK They were used to combine original soft magnetic materials and polymer materials and create a magnetic powder with an innovative composition and configuration. The resulting sheets are able to attenuate noise at high frequencies from 10 MHz to 3 GHz. They also have a certified flammability rating of UL94V-0.

As various types of electronic devices have become smaller while incorporating more advanced functions, the occurrence of high frequency noise has become more and more challenging. The IRJH3 magnetic sheets exhibit excellent noise suppression effects, especially at high frequencies from 500 MHz to 2 GHz, a frequency range for which the demand for solutions has been growing in recent years.

The new magnetic sheets are ideal for noise countermeasure applications in mobile electronic devices such as mobile phones, digital still cameras, digital video cameras, and other consumer electronic devices.

Glossary

• Soft magnetic material: Magnetic material with low coercive force and high magnetic permeability.
• UL94V-0: The highest flame resistance rating of the UL-94 flammability standard developed by Underwriters Laboratories Inc.

Main Applications

• Noise countermeasures in mobile electronic devices such as mobile phones, digital still cameras, digital video cameras, and other consumer electronic devices.

Main Features and Benefits

• Compound magnetic sheet with outstanding noise suppression effects in high frequency bands
• Certified to the UL94V-0 flame resistance standard.
• RoHS compatible.

Key data

Product designation	IRJH3
Recommended frequency band	10 MHz to 3 GHz
Magnetic permeability [µ’ at f = 1MHz]	120
Operating temperature range[°C]	-40 to +85
Thickness [mm]	0.1, 0.2, 0.3, 0.4, 0.5
Standard size [mm]	300 × 200
