Voltage protection devices: Miniaturized multilayer varistors for automotive Ethernet

  • Low capacitance and narrow tolerance for signal integrity at high data rates
  • Miniature dimensions of 1.0 x 0.5 x 0.5 mm
  • High operating temperatures up to 150 °C
  • Qualified to AEC-Q200
Voltage protection devices: Miniaturized multilayer varistors for automotive Ethernet

August 20, 2019

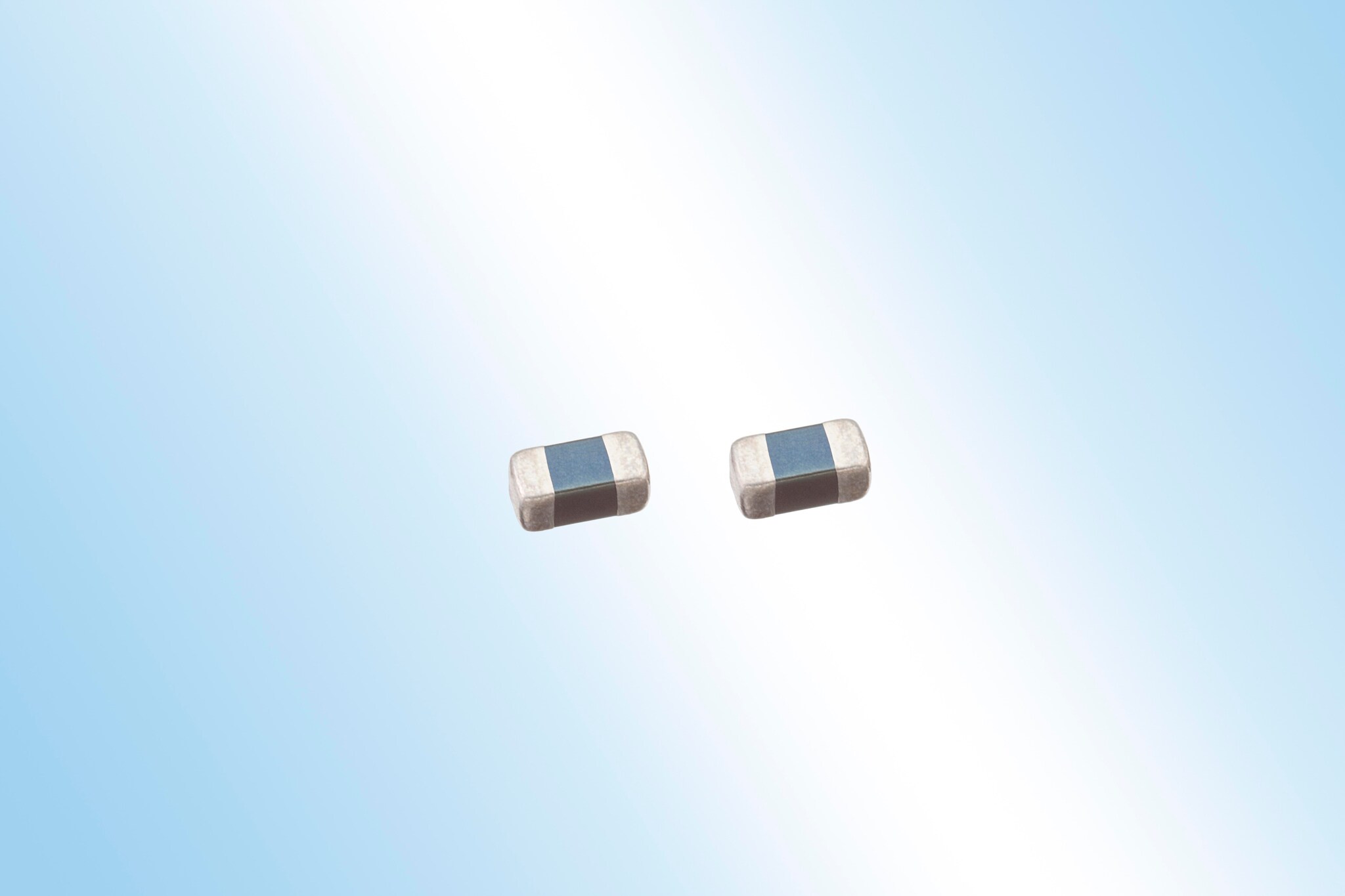

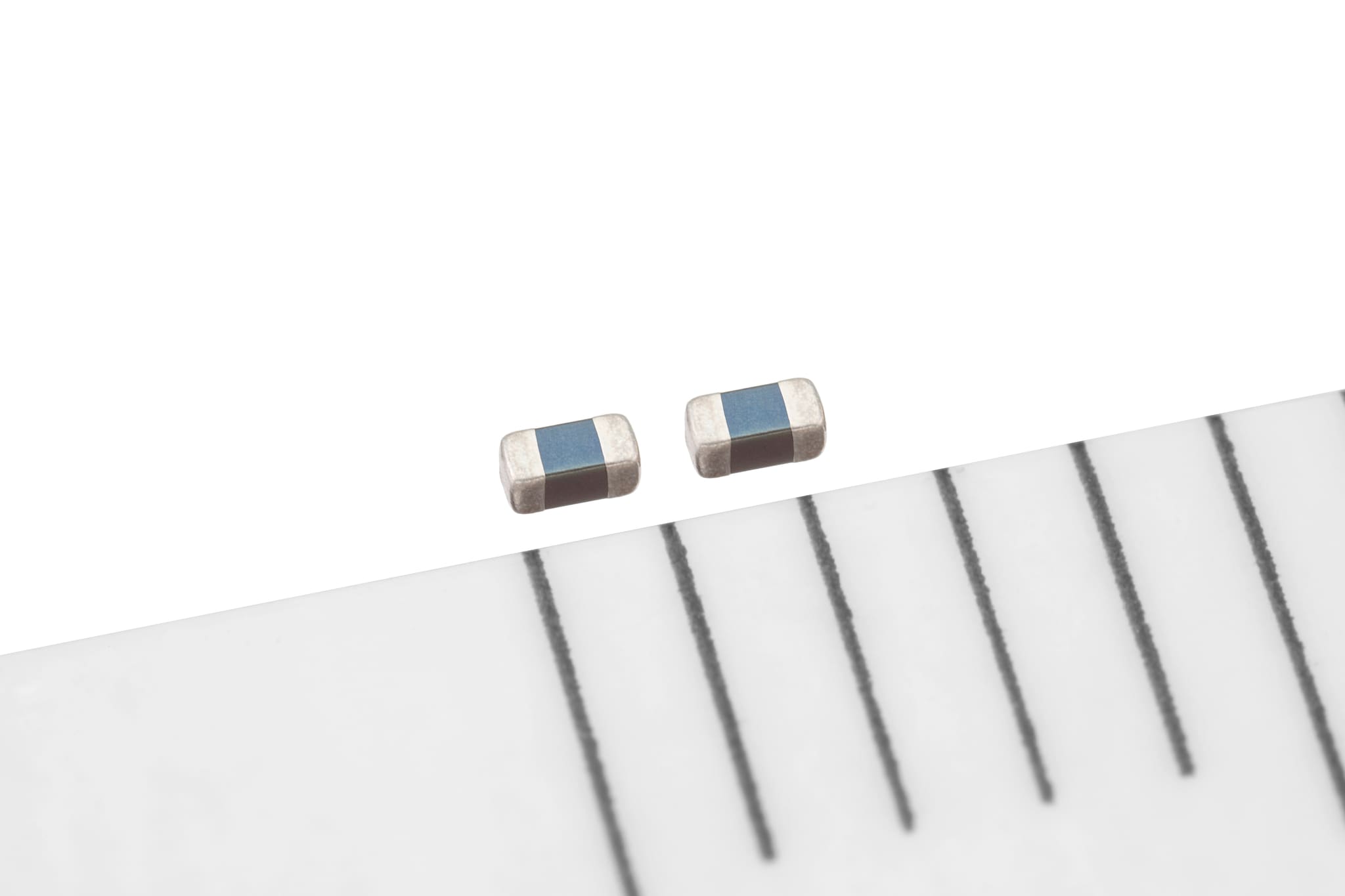

TDK Corporation (TSE:6762) has expanded its lineup of multilayer varistors with the new AVRH10C101KT1R1NE8 for automotive Ethernet. Thanks to the extremely precise multilayer technology, the product features a low capacitance of just 1.1 ± 0.3 pF, ensuring signal integrity even at the high data rates of automotive Ethernet. With its IEC 1005 package (1.0 x 0.5 x 0.5 mm) the varistor boasts a volume that is 75 percent smaller than existing components. The component, which is qualified to AEC-Q200, features a maximum operating voltage of 70 V and an operating temperature range of -55 to +150 °C, thus expanding the range of possible applications.

Automotive Ethernet is the communication infrastructure of choice for today’s vehicles since ECUs require a high speed, low latency communication in advanced driver assistance systems (ADAS) and autonomous driving. TDK’s newest varistor protects automotive ECUs and components from ESD without impeding high speed communication between ECUs.

Moving forward, TDK will continue to expand the product lineup in terms of compactness, operating voltage, and capacitance to support a wide range of automotive device designs.

Main applications

  • ESD protection of ECUs networked with automotive Ethernet

Main features and benefits

  • Low capacitance through extremely precise multilayer technology
  • Compact dimensions of just 1.0 x 0.5 x 0.5 mm
  • High reliability; qualified to AEC-Q200
  • High operating temperature of up to 150℃

Key data

Type Dimensions
Max. operating
voltage [V]
AVRH10C101KT1R1NE8 1.0 x 0.5 x 0.5 70 1.1 ±0.3 Ethernet

Multilayer varistor portfolio / Application overview (TDK and EPCOS brand products)

Type Case size
AEC−Q200 LIN CAN CAN−FD MOST FlexRay Ethernet
typ. max.
0402, single
CT0402S14AHSG 0402 > 28 16 10 15 x x x x x x
CT0402S17AG 0402 > 32.5 19 15 - x x x x x x
CT0402S20AHSG_P 0402 > 100 24 4.7 5.7 x           x
AVRH10C270KT350NA8 0402 27 19 35 45.5 x   x x x x
AVRH10C270KT150NA8 0402 27 19 15 19.5 x   x x x x
AVRH10C101KT4R7FA8 0402 100 70 4.7 5.7 x           x
AVRH10C101KT1R1NE8 0402 > 100 70 1.1 1.4 x             x
0603, single
CT0603S20AHSG_P 0603 > 100 24 4.7 5.7 x           x
CT0603L25HSG 0603 > 61 32 10 15 x x x x x x
CT0603S14AHSG 0603 > 28 16 15 30 x x x
AVRM1608C270KT221M 0603 27 19 220 264 x x
AVR-M1608C270MTAAB 0603 27 17 30 - x   x x x x
AVR-M1608C270MTABB 0603 27 17 15 - x   x x x x
0508, array
CA05M2S10T100HG 0508 > 26 12 2 x 10
± 3%
15 x   x x x x
