Capacitors, Part 2 "Ceramic Capacitors [1]"

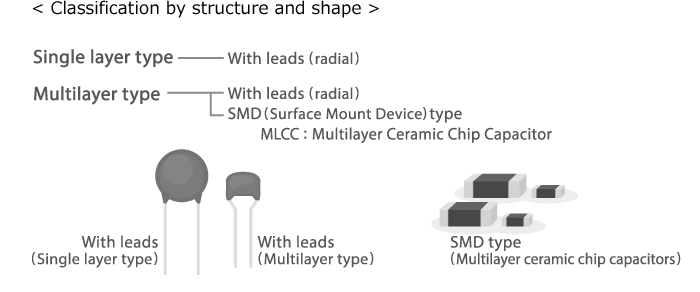

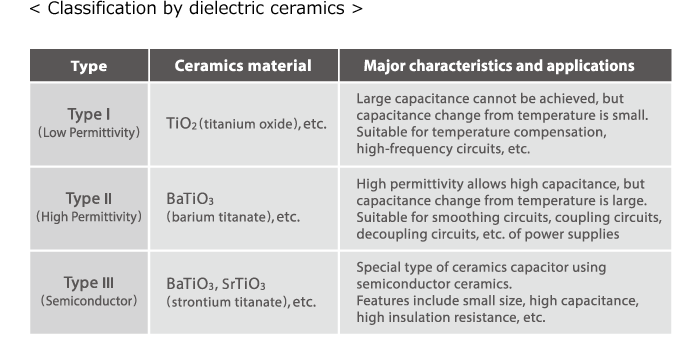

Types of ceramic capacitors
About 80 percent of all capacitors manufactured worldwide currently are chip type ceramic capacitors. A mobile phone has about 300 to 400, a smartphone about 400 to 500, and a notebook computer or tablet device about 700 to 800 of these capacitors, which contribute significantly to smaller dimensions and lower weight of electronic equipment. These components function as the core capacitor in mobile phone systems, with each mobile capacitor supporting circuit stability. In compact electronics, a phone capacitor is essential for noise reduction and power smoothing, making the capacitor in phone hardware a key factor in reliable performance.
Structure of multilayer ceramic chip capacitors

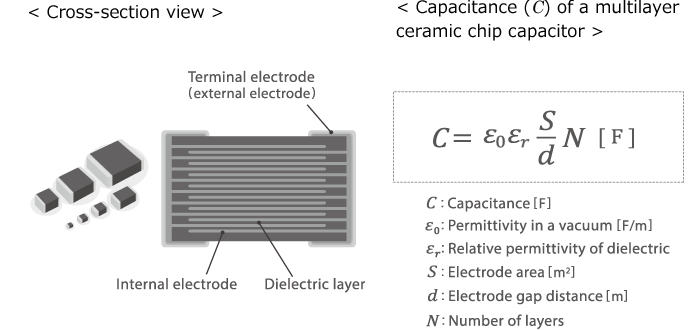

A multilayer ceramic chip capacitor incorporates multiple dielectric and internal electrode layers in a sandwich-like configuration. Instead of using leads, terminal electrodes (external electrodes) are integrated in the SMD (surface mount device) itself, making the capacitor more compact. This structure saves space and enables high-density mounting on circuit boards. Such a structure defines the modern ceramic SMD capacitor, especially in TDKceramic capacitors, which emphasize precision and durability. This approach represents a core part of electronics ceramic engineering used across advanced printed circuit board layouts.
Basic technologies for increasing capacitance of multilayer ceramic chip capacitors

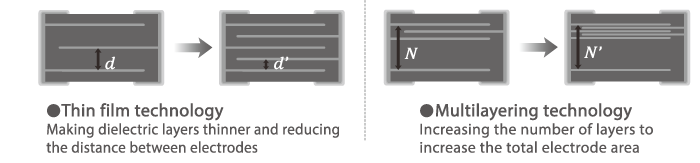

As can be deducted from the above equation, ways to increase the capacitance of multilayer ceramic chip capacitors are making the dielectric layer thinner, reducing the distance between layers, and increasing the number of layers to increase the total electrode area. The basic technologies to achieve these aims are thin film technology and multilayering technology. These design choices expand typical ceramic capacitor uses and enable functions beyond basic filtering. When remove ask what is a ceramic capacitor used for, the answer often includes smoothing, decoupling and RF applications core uses of most ceramic capacitors remove.
Manufacturing techniques of multilayer ceramic chip capacitors

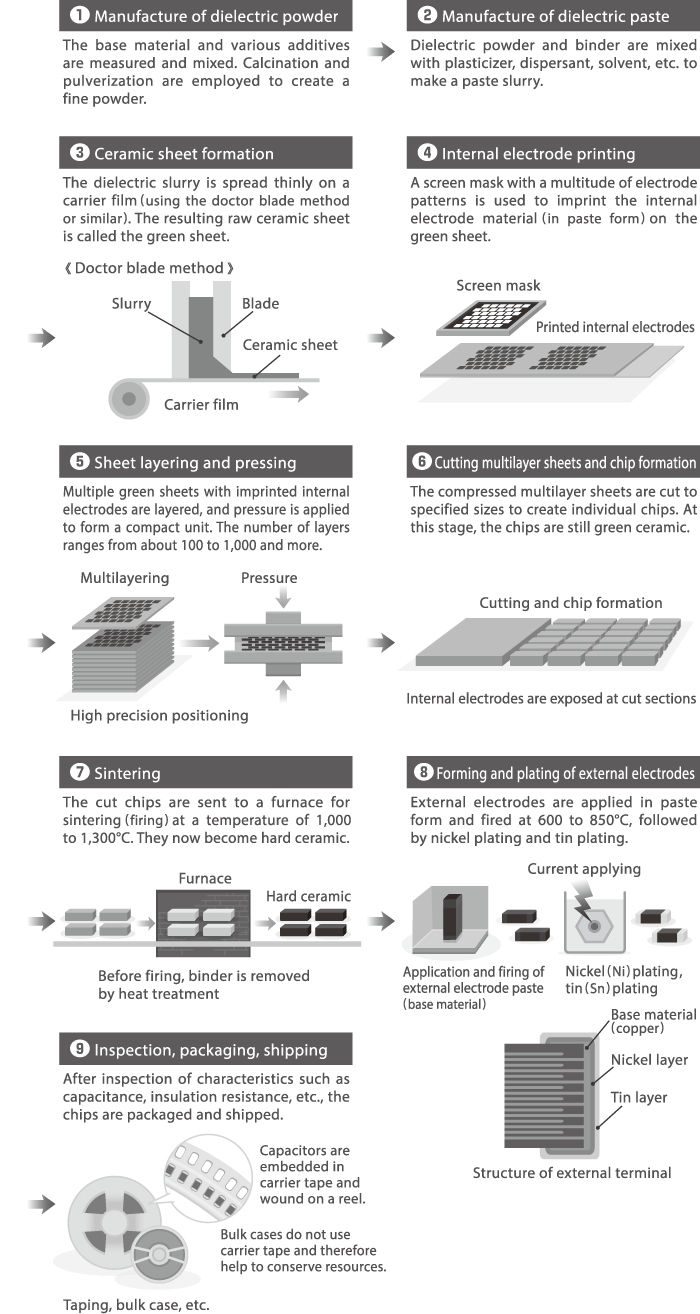

Manufacturing techniques of multilayer ceramic chip capacitors include printing and the so-called green sheet method, which is currently the dominant type. The steps involved with this method are described below. These methods enable highly compact mobile capacitor designs and support large-scale electronics ceramic production. Their reliability also contributes to broader ceramic capacitor uses in consumer and industrial devices.
